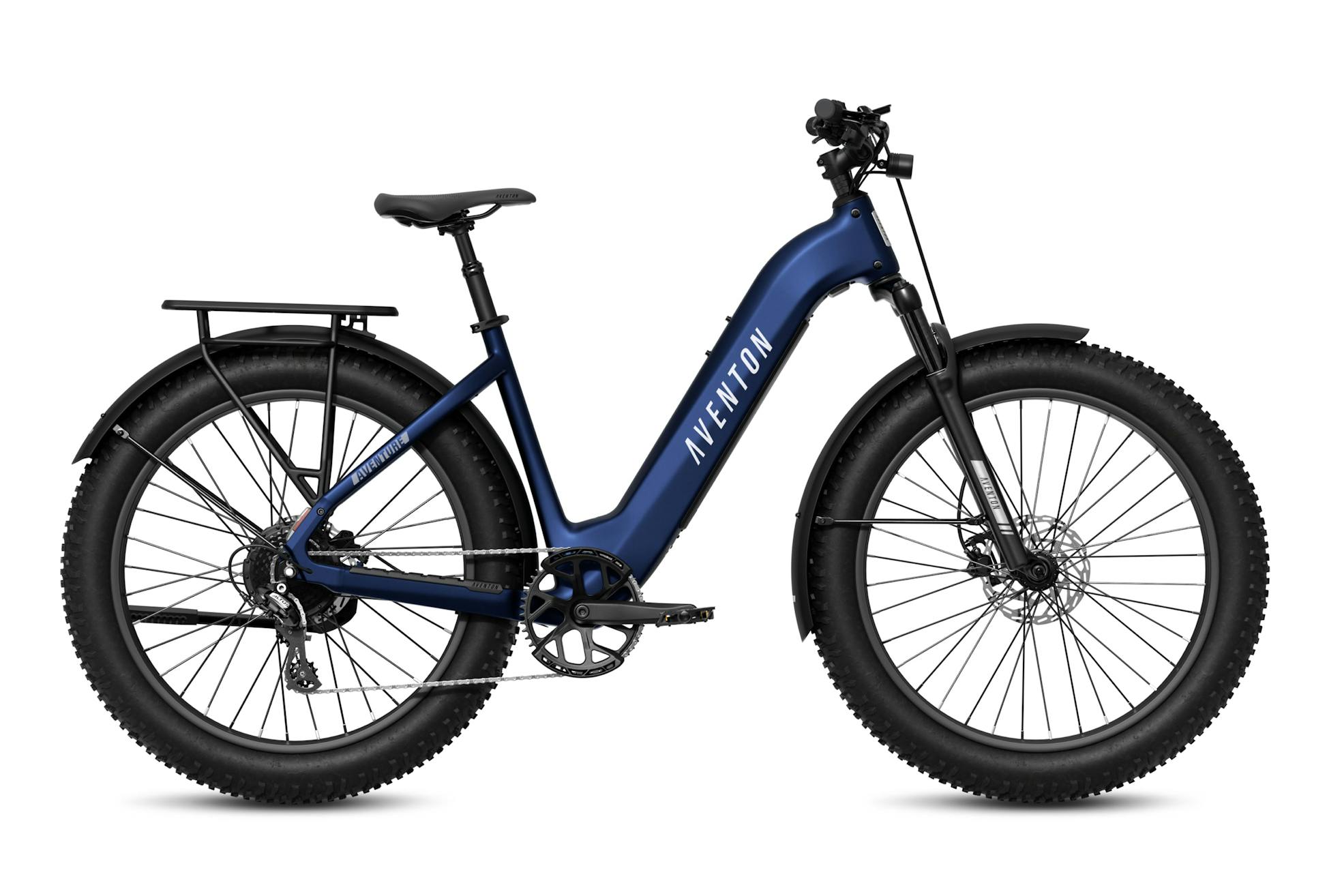

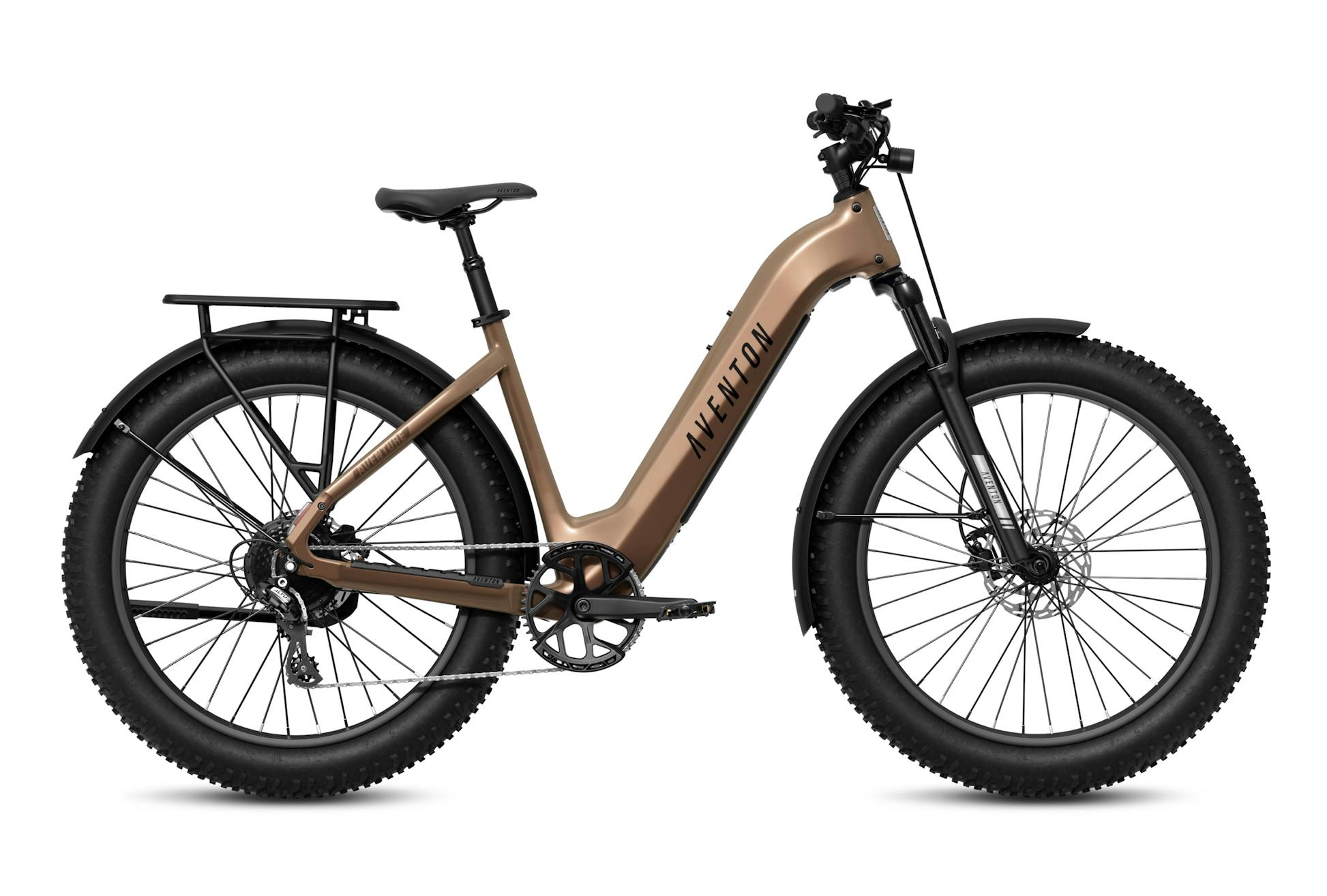

Aventon Aventure 3 step through.
Regular price
$1,999.00 USD
Regular price
Sale price
$1,999.00 USD
Unit price
per
Couldn't load pickup availability
Model
Aventure 3 Step Through Ebike
Weight 77 lbs
Total Weight Limit 400 lbs
Rider Height R: 4'11" -5'7" | L: 5'7" - 6'1"
Ebike Class Class 2 Ebike
Water Resistance IPX6
Range Up to 65 miles
Battery Safety Certifications
Ideal UseAll-Terrain
Bike Safety Certifications
Frameset
Frame - 6061 Aluminum, Gravity Cast Front Triangle
Fork- Aventon/Zoom Suspension Fork, 80mm travel, with lockout
Rear Spacing- 190mm
Fork Spacing - 135mm
Frame Style - Step-Through
Wheelset
Front Wheel
26", 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve
Rear Wheel
26", 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve
Tires Inova 26x4.0 puncture resistant
Ebike System
Speed\ Class 2 Motor 36V, 750W Hub Drive
Motor Torque 80Nm
Motor Power 750W (1188 Peak)
Display - Aventon BC280
Battery - Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight 8.7lbs
Controller - 36V/33A
Throttle - Aventon LH Handlebar Mounted
Sensors - Double Sided Bottom Bracket Torque Sensor
Charger - 36V Output: 42V/ 4A
Charging time from 0% to 100% 5 hours
Lights Front and rear lights integrated
Brakes
Front Brake
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Rear Brake
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Front Brake Rotor
Tektro 180mm 6 bolt
Rear Brake Rotor
Tektro 180mm 6 bolt
Drivetrain
Rear Derailleur Shimano Altus 8-Speed
Shifter Shimano 8-Speed Trigger
Chain 7/8 Speed 118L
Cassette 12-32T / 8 Speed Shimano CS HG200-8
Chainring 48T
Crankset 3pc, 170mm crank arm
Bottom Bracket
100x177 Square Taper, Double Sided Torque sensor bottom bracket
Pedals
9/16" Alloy Platform
Cockpit
Saddle
Aventon Saddle
Seatpost
Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
Seatpost Clamp
34.9mm
Handlebars
Aluminum 31.8mm, 680mm
Grips
Aventon Lock on grips
Headset
Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs
Included Accessories
Kickstand
Included, rear mount
Rear Rack
Included
Fenders
Included
Technical Overview
The Aventure 3 ships as a Class II ebike, with pedal assist and throttle. The Aventure 3 will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I ebikes or throttles are prohibited. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components. *Max range is determined using PAS 1 on flat terrain with a rider weight of 160 lb.*
